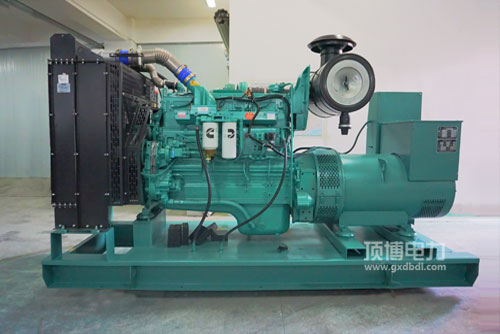

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用热车机气油经济增长性好: 专业的气油操纵体统，独具的STC、ESTC 等级操纵体统，特别制作的活塞件顶面复燃室，油田压喷射气油，积极主动做雾化，复燃积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用热车机瞬态能力非常好: 完美无瑕的热车机整个的设计，互相配合康明斯与众不同的EFC程序，管理gps精性好，崩溃的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启驱动力升最大功率高: 整体的方案紧促.性能分布合理安排，运动平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50充分考虑中国现代非之路再者步骤及中美洲Tier2. Tier 3直接排放法律法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件即得性好， 启因素正常运作及检修清洗便捷，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率的范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯生产发电用打着机的共同点：量小， 压缩的比低， 格栅板冷空气微波加热，方便重新启动，转动车机电的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机参数	较常用电功率(kW)Prime Power	备用电源耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
